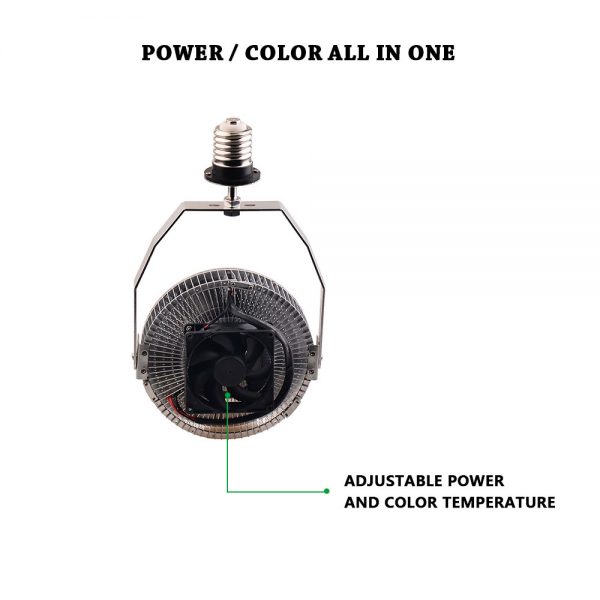

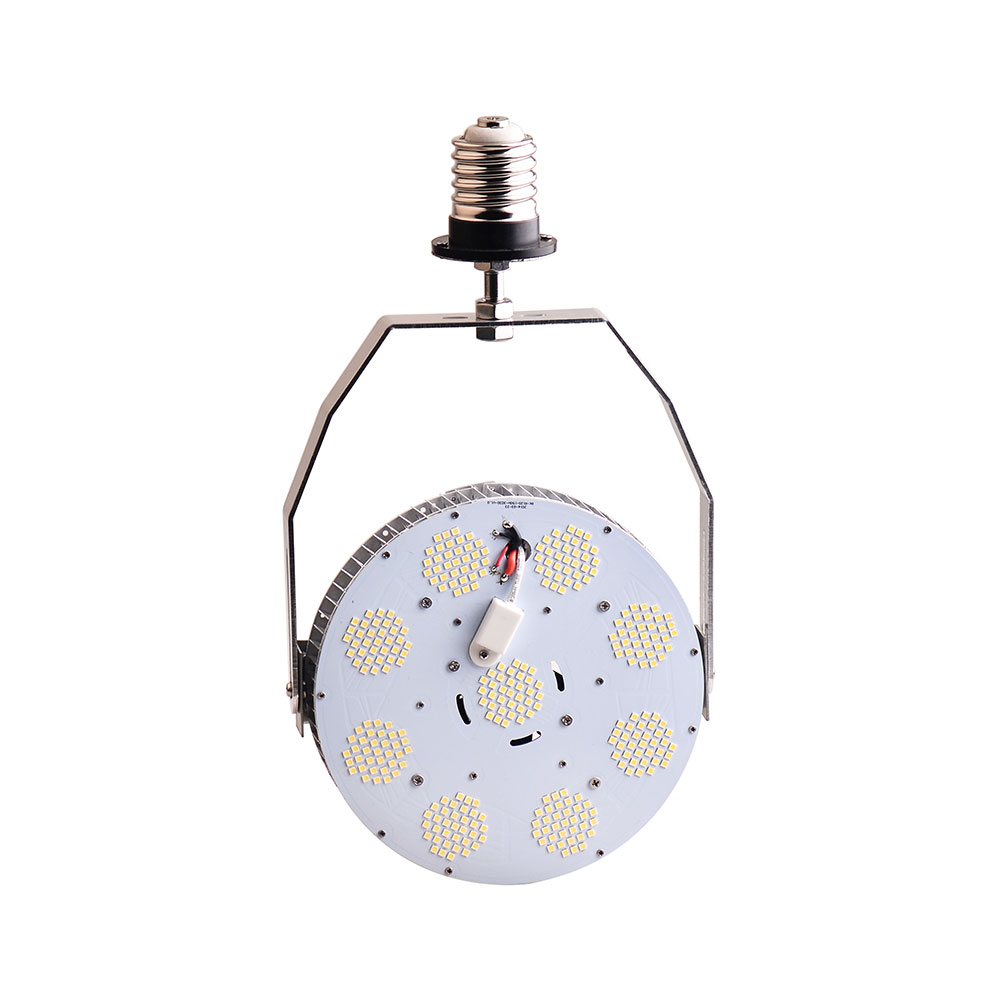

80W 100W 120W 150W Shoebox Retrofit Kit LED Adjust color 3000K 4000K 5000K All in 1 Lamp

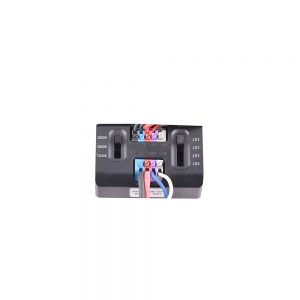

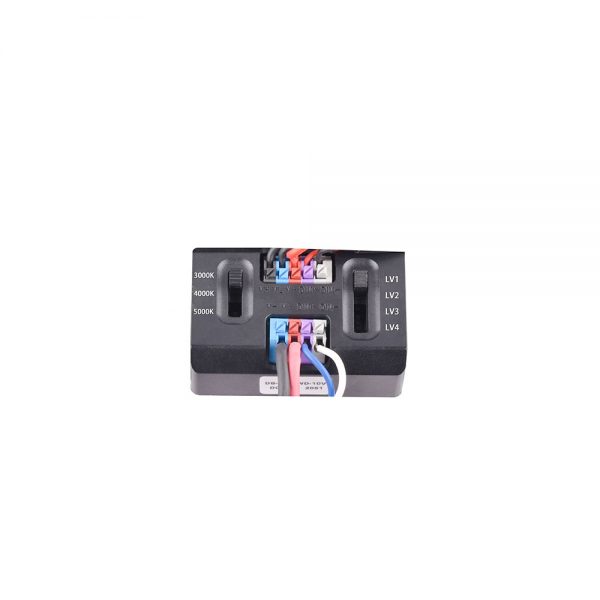

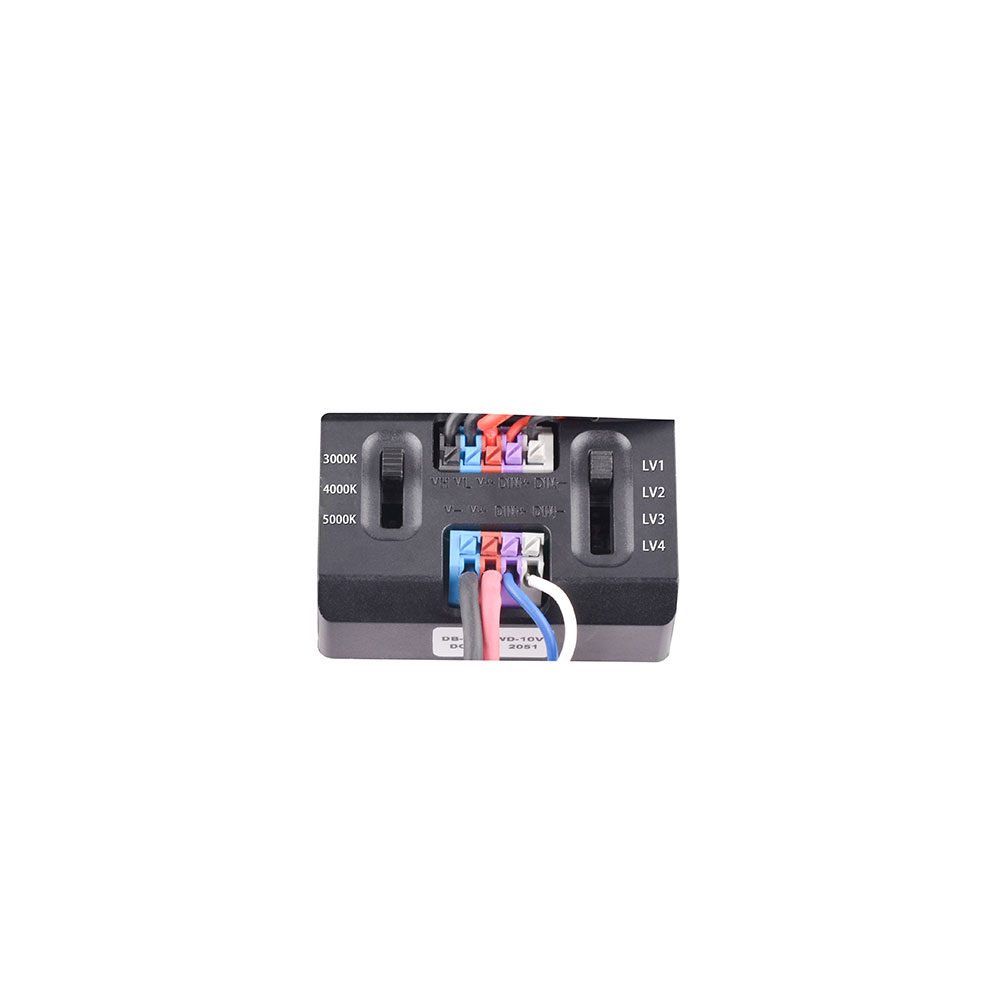

1 lamp with different CCT (3000K/4000K/5000K)
1 lamp with different wattage (80W/100W/120W/150W)
About this item
LED Shoebox Retrofit Kits Light – With outstanding 130 lumens per watt, the led retrofit kit provides 19,500 lumen output. This 150 watt led light is a perfect replacement for a 600W traditional bulb,typically appearing brighter and also providing more than 90% in energy savings.80+ CRI Rating and 5000K daylight for bright outdoor large area lighting.

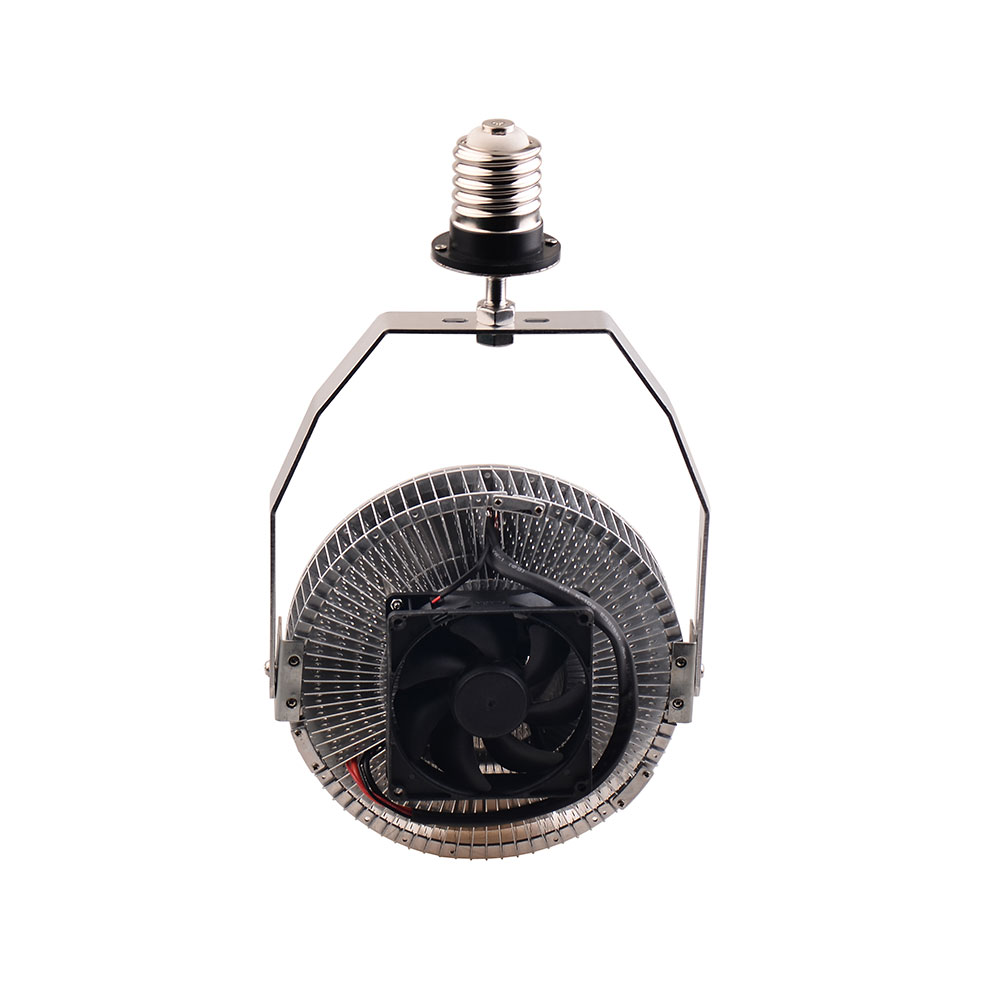

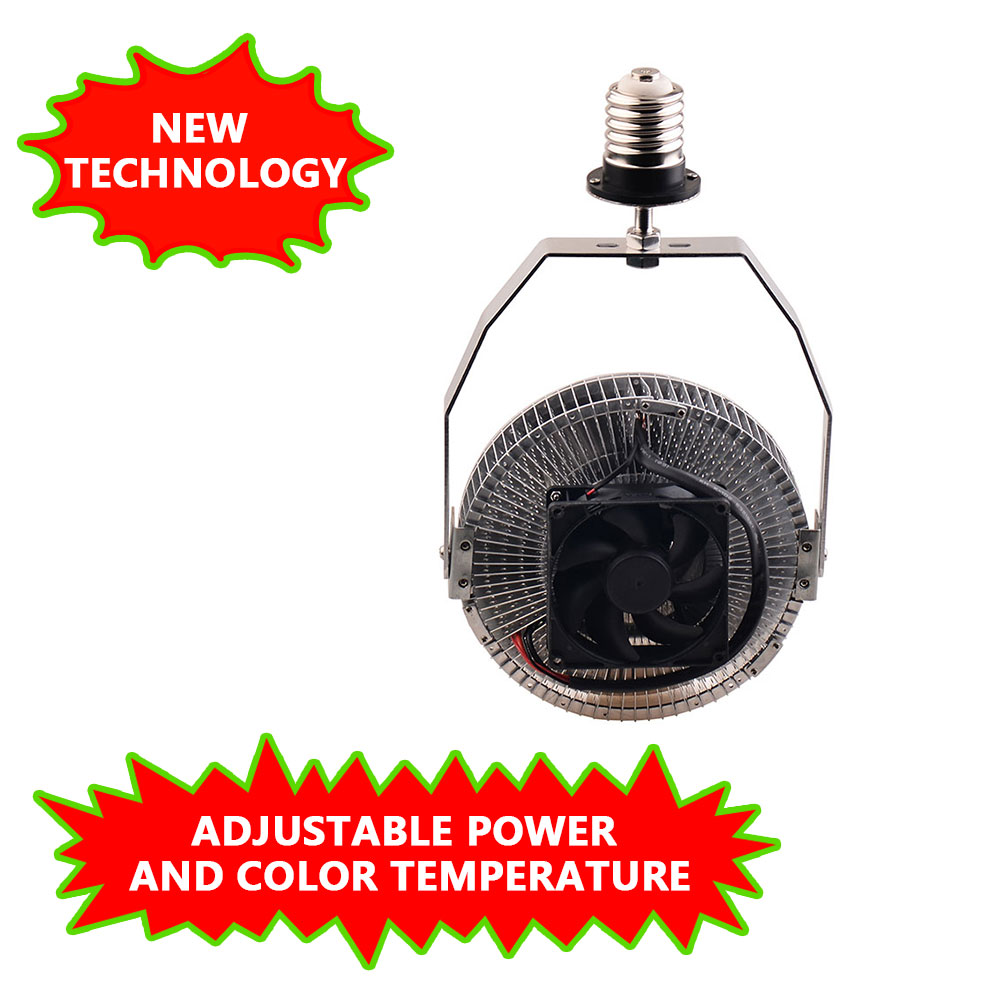

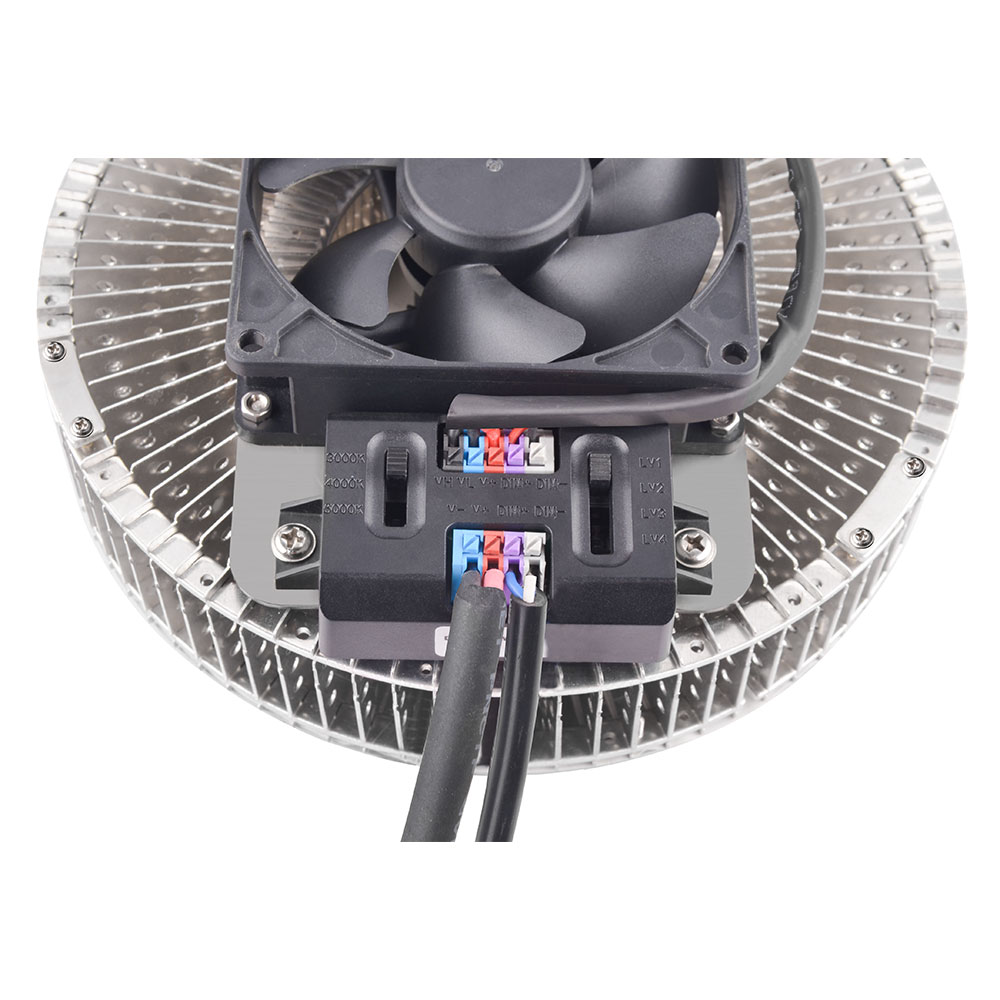

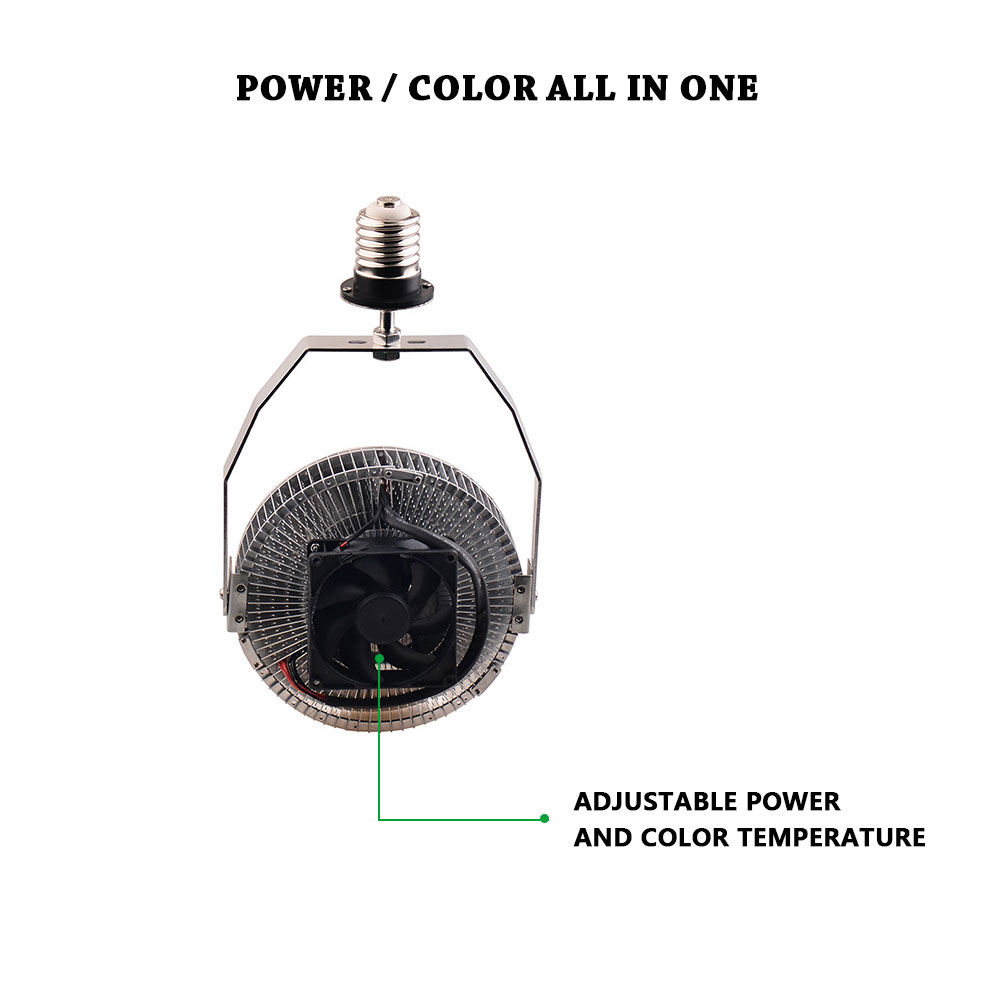

Maintenance Saving – Advanced SMD LEDs and Meanwhile Driver for superior performance and longer lifespan.Excellent heat dissipation system with overheat protection sensor, aluminum heat sink and high speed fan to protect leds at lower operating temperature. Longer lifespan of 500,00 hours, that’s about 23 years of 6 hours per day,which will reduce maintenance cost dramatically.

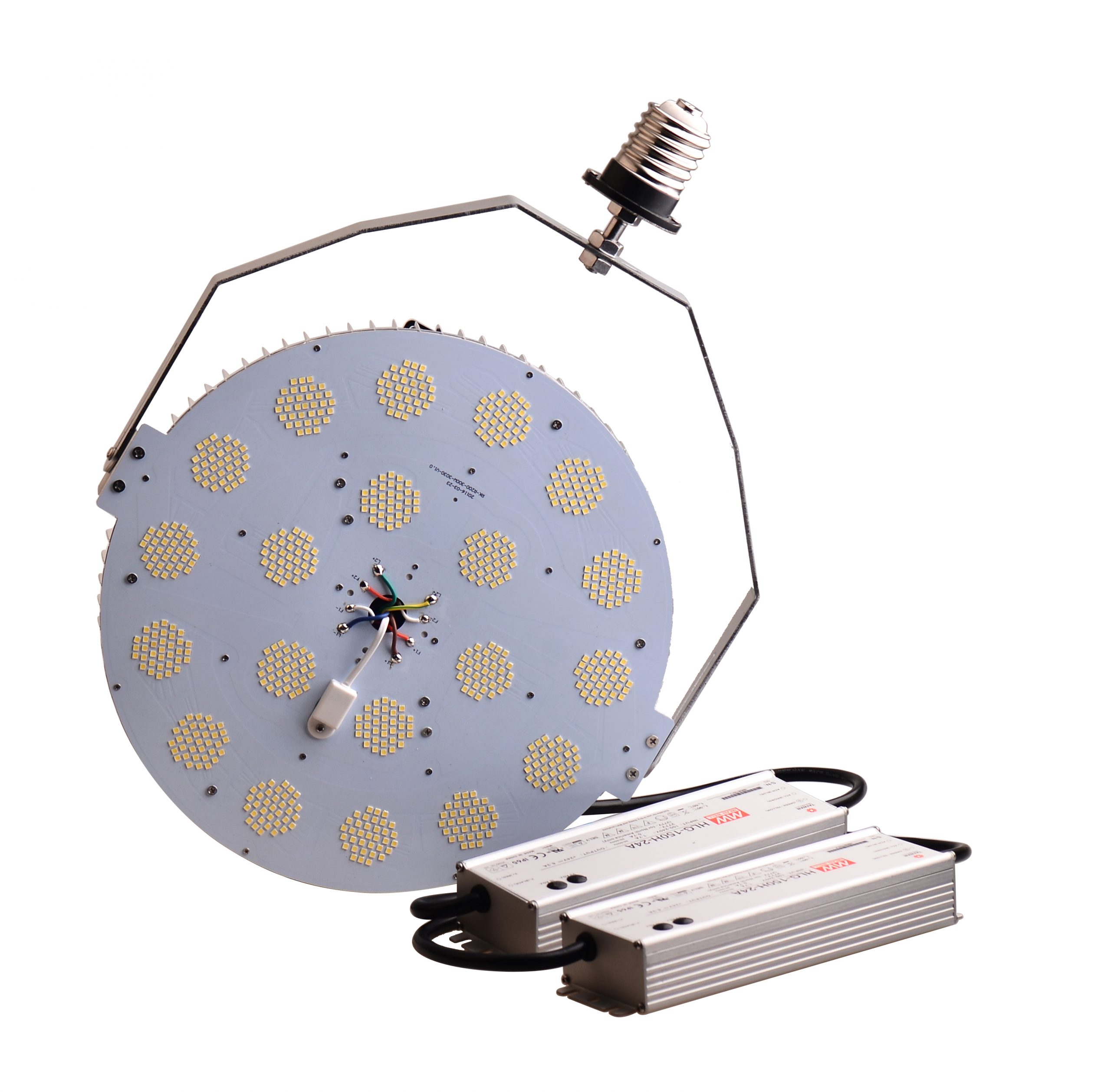

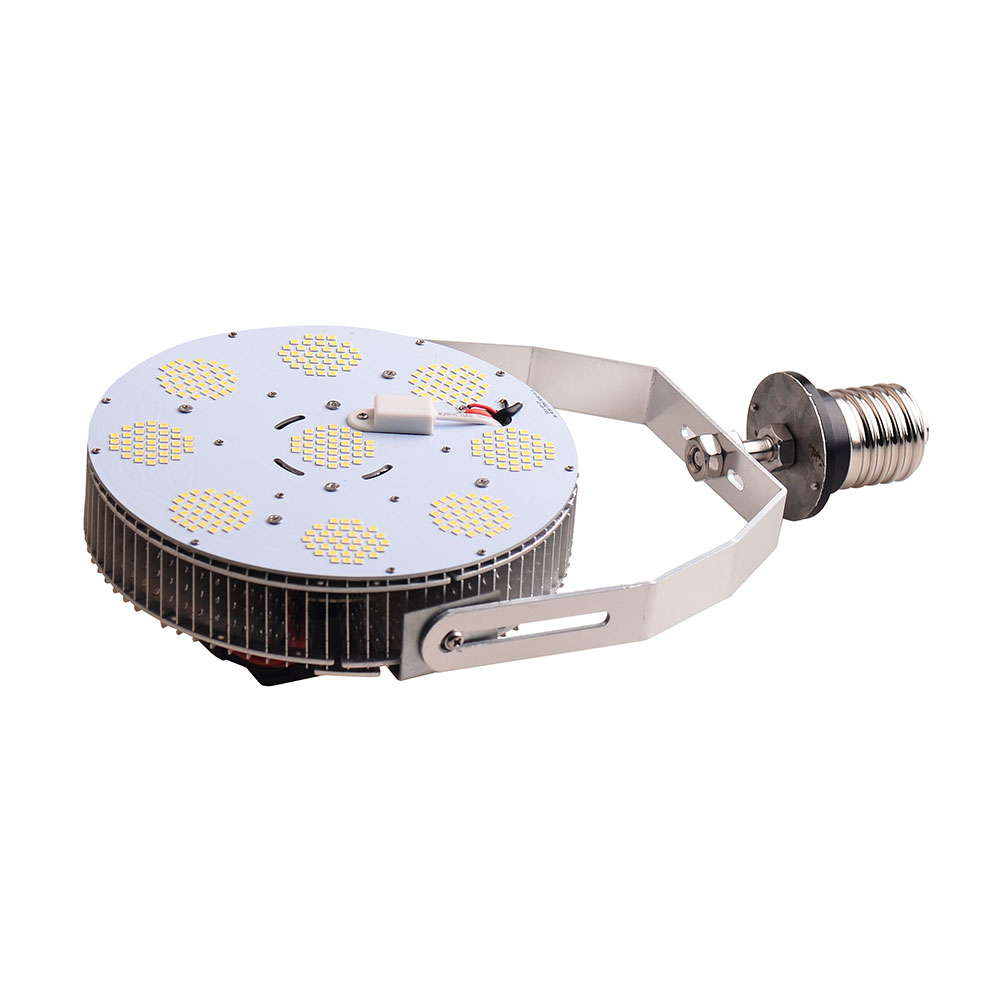

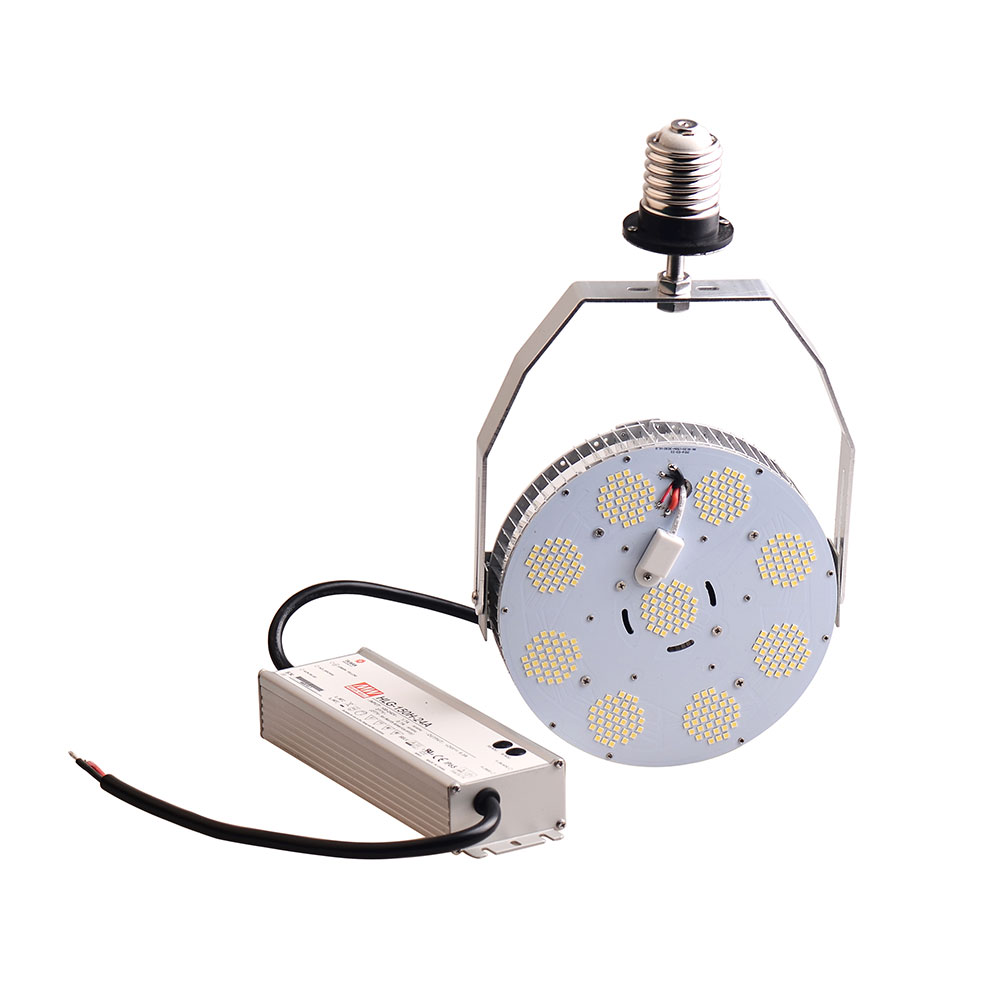

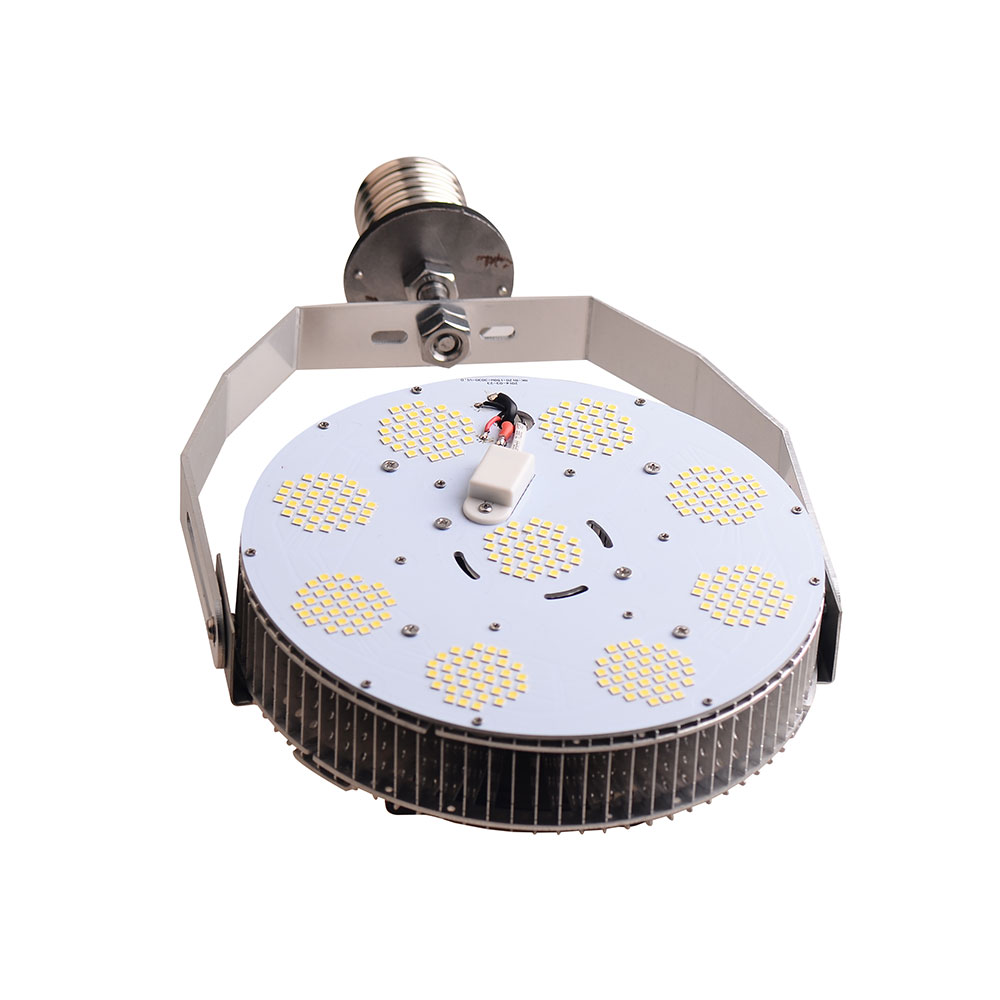

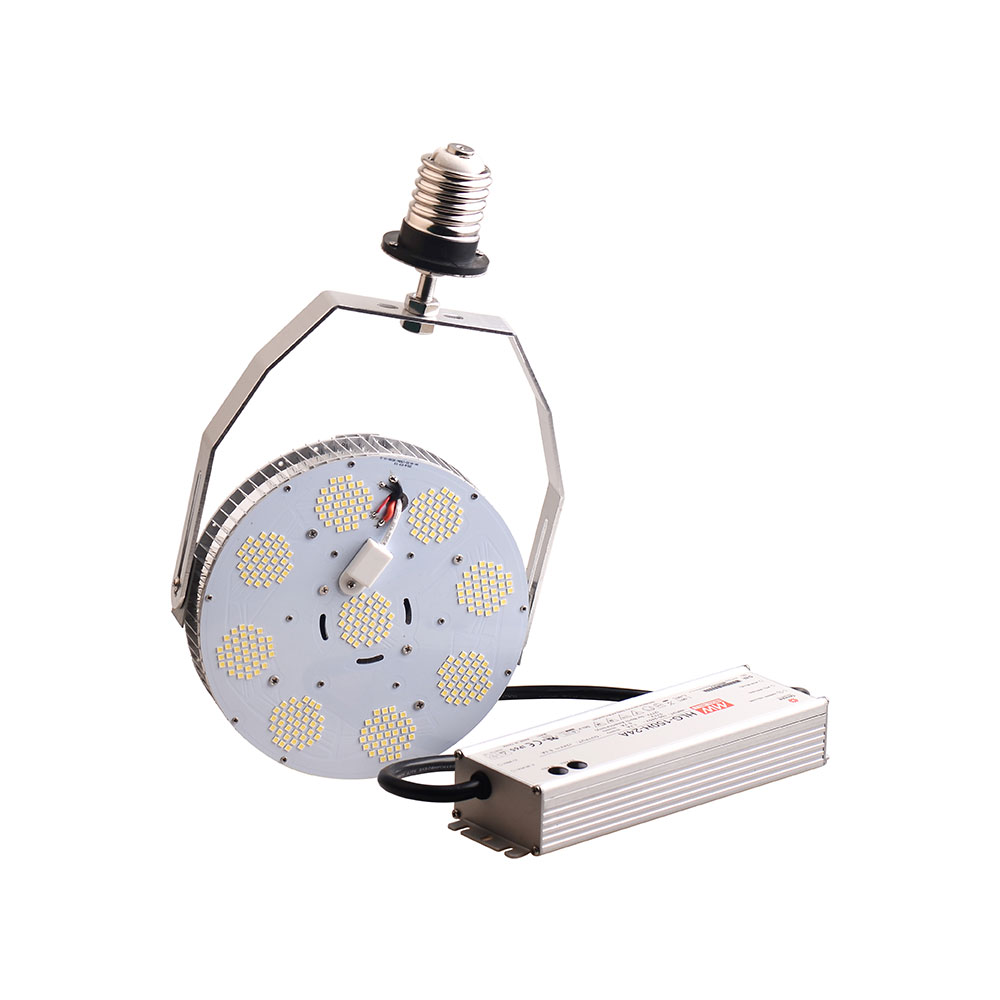

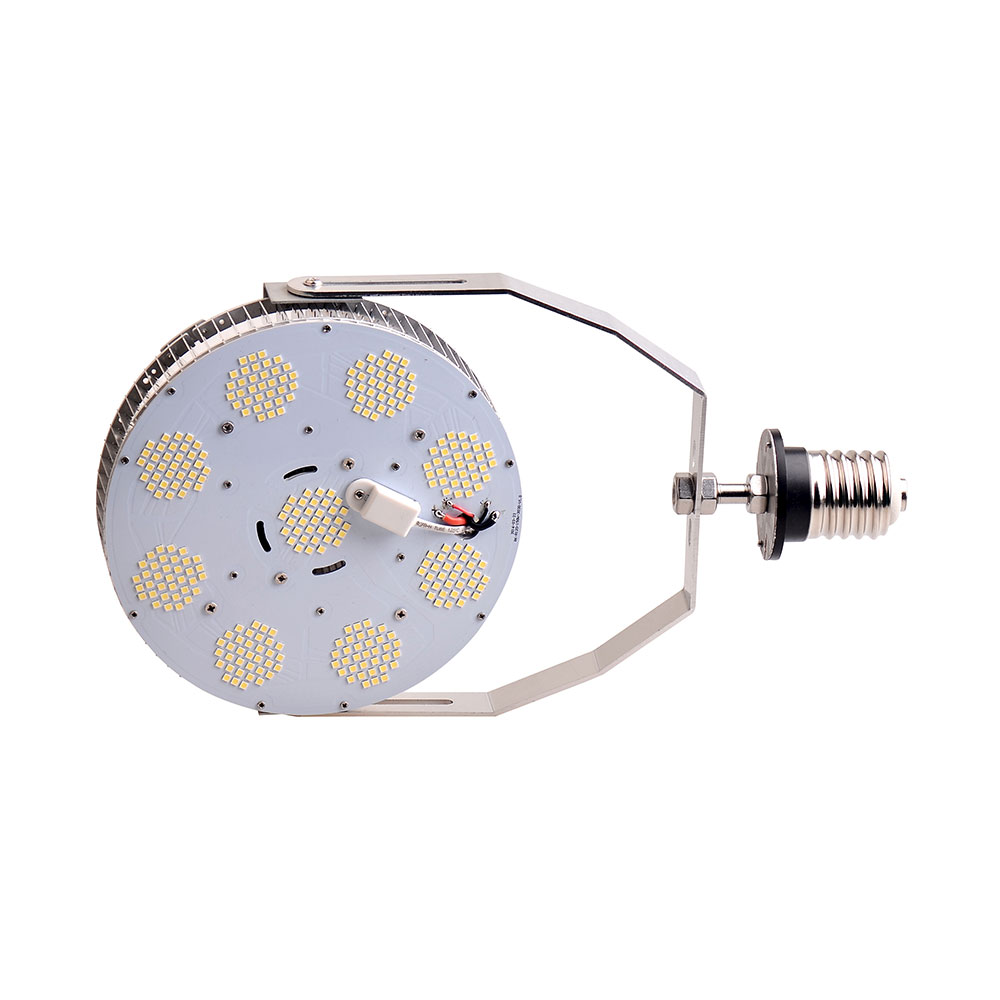

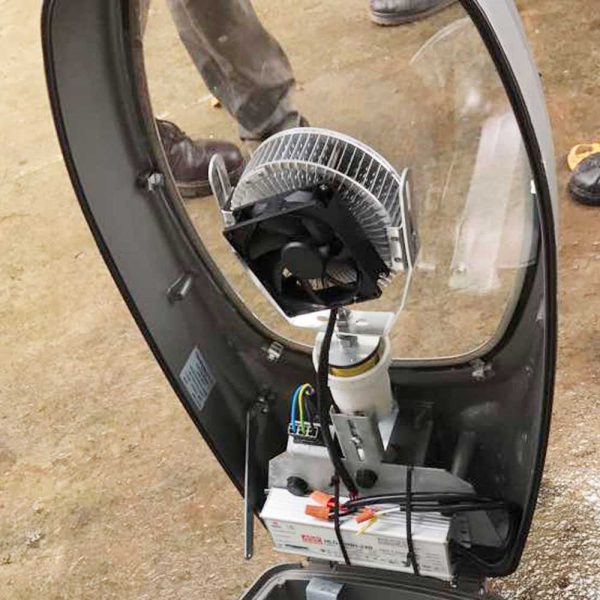

Quick Installation – The led retrofit kits come with E39 Mogul Base – Just screw in. Replace the ballast with the LED Driver and old bulb with the LED light. No need to replace existing fixtures. Adjustable U bracket for horizontal and vertical mounting. Please check retrofit kit picture and dimensions to ensure fitment.

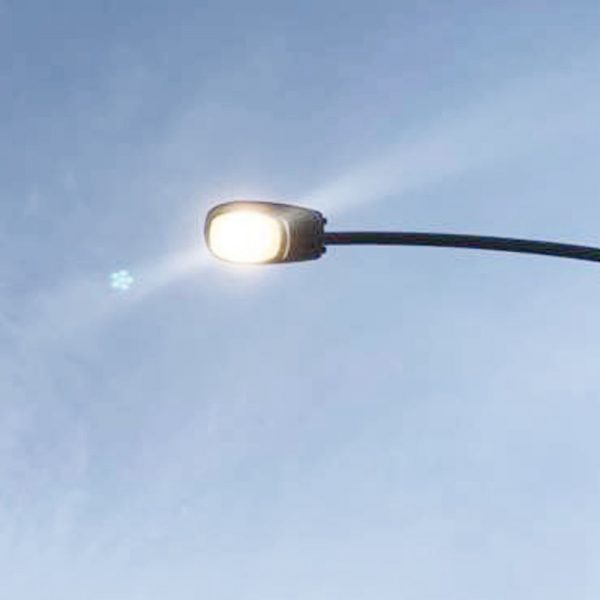

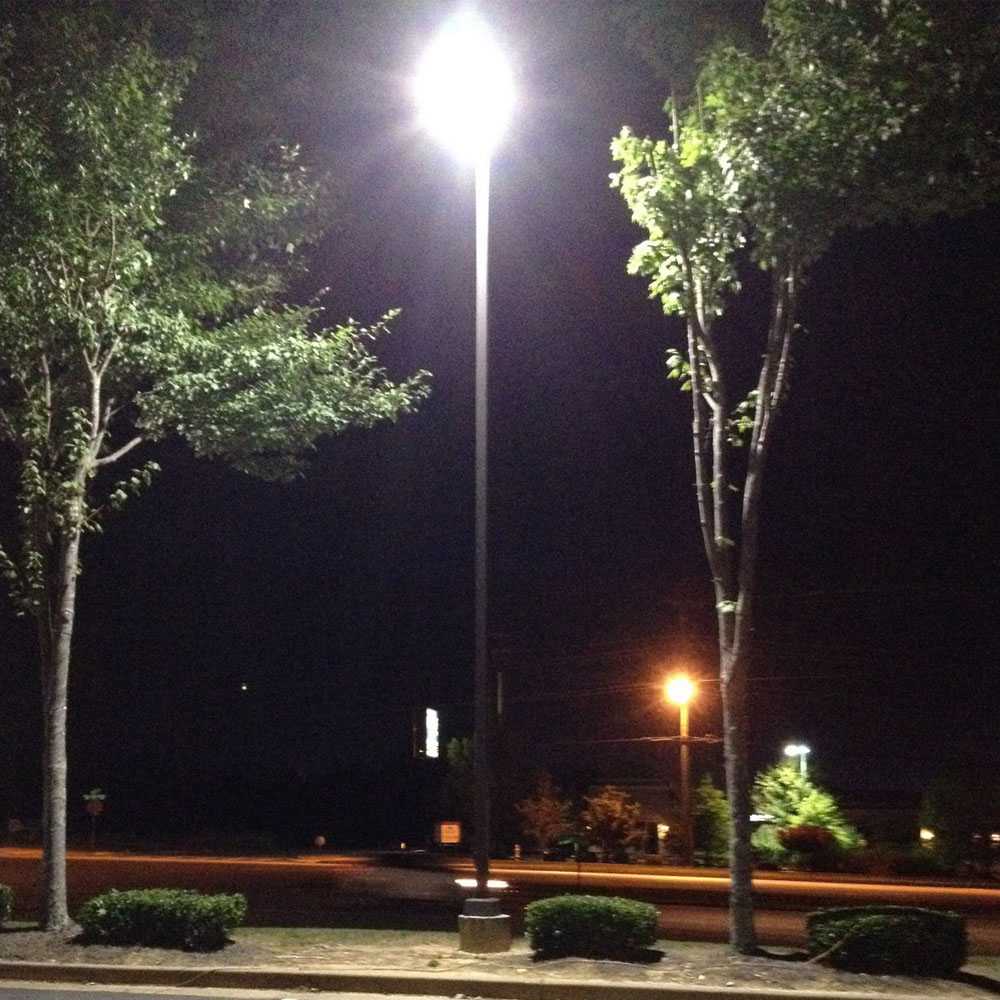

Wide Application – High Bay led retrofit kit is perfect for retrofitting existing high bay,low bay, wall pack, led parking lot pole lights,led tennis court lights,led shoebox light, and many other types of fixtures. Great solution for commercial electrical contractor or project managers!
5 Year Warranty – Our led retrofit kits are commercial and industrial grade, and have successful won and ETL approval,which ensures Rebate Eligible and lowest maintenance. We also offer 5 years warranty for the 450 watt metal halide led replacement retrofit kits.
Specifications
Index | Parameter |
Wattage | 80W/100W/120W/150W All in 1 Lamp |
Model | BB-SDD-80W/150W-4IN1 |
Luminous Flux | 80W=10400LMÂ 100W=13,000LM 120W=15,600lm 150W=19,500lm |

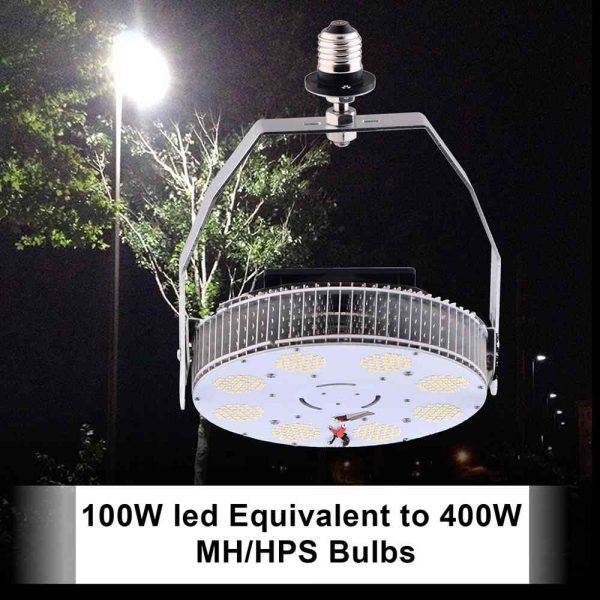

Replacement | 80W=HPS 250w 100W=HPS 300w 120W=HPS 360w 150W=HPS 450w |
DLC certification (only -E39) | Y |
Light Source | SMD LED |
Luminous Efficacy | >130lm/w |
Operation Temp | -40 to +45℃ |
CCT | 3000K-4000K-5000K |
CRI | 80+ |
Life Span | 50,000 hours at 25℃ |
Voltage | (BB-SDD-XXX)100-277VAC/50-60HZ (BB-SDD-XXX-HV)200-480VAC |
Driver | UL listed dimmable power supply |
Dimming | 3 in 1 Dimming Driver(1-10VDC,10V PWM signal ,resistance) |
Beam Angle | 120° |
Lamp Base | E26/E27/E39/E40 |
PF | >0.95 |
Warranty | 5Years |
