100W Hazardous Location Explosion Proof Lights 5000K 13,500 Lumens AC100-277V


Default Order
IndexParameter
Wattage100W
ModelBB-100W CYZDA
Color Temperature5000K
Beam Angle120° Beam Angle
Total Lumens13,500lm
Input VoltageAC120-277V
Size16’x16’x10.5′
Hazardous LocationClass 1 Divission 1
Explosion-proof GradeIl2 D Ex op is tb IIIC T135°C Db
Warranty5Years
Spec. Sheet
SKU: 17468 Stock Quantity: 110

$515.80

110 in stock


Certifications:
Payments: payments

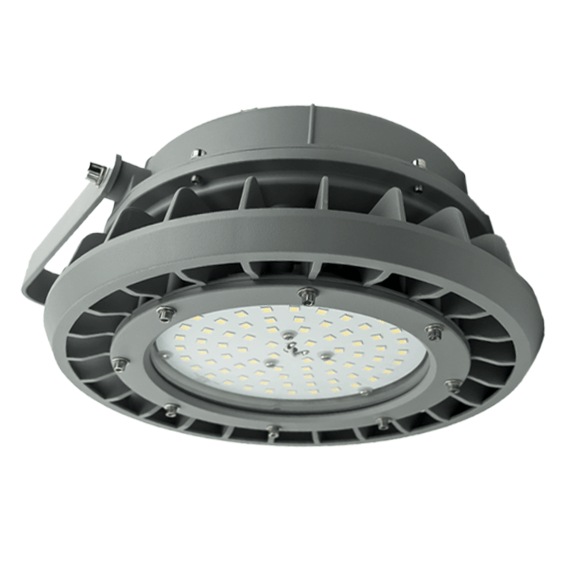

100W Hazardous Location Explosion Proof Lights 5000K 13,500 Lumens AC100-277V

1. This 100W Hazardous Location Explosion Proof Lights 5000K 13,500 Lumens AC100-277V, great replacement for 300W traditional HPS lamp. saving over 85% on your electricity bill.
2. IP66 weatherproof rating, which can ensure the light work properly no matter rain, snow, heat or cold environment, AC100-277V, 5000k daylight 120 degrees.
3. Our 100w Hazardous Location Lighting Fixtures are made of heavy duty die cast aluminum housing and tempered lenses,ETL DLC Approved. The innovative heat dissipation can prolong LED lifespan to 50,000 hours. This is approximately 15 years of illumination(10 hours per day).
4.The 100W Hazardous Location Lighting Fixtures can be mounted on the walls, the ceilings or to the ground. perfect for LED Lanscape gas station, petroleum and chemical industries coal mine, military, airport, warehouse, marine etc.
5.Instant-start, Hazardous Location Lighting Fixtures, NO flickering, NO humming.
6.Green and Eco-friendly, No mercury, No UV, infrared or other deleterious radiation.
7.Energy saving,replace 300 Watt high intensity discharge (HID) or low pressure sodium (LPS) luminaires. Save 80% in electricity consumption compared with conventional street lights, high pressure sodiums and metal halides.
8.Easy to install and operate, Internal driver, input voltage AC100-277V.
9.ETL: UL1598 / UL1598A / UL844 / CSA C22.2 No.137 / No. 250.0;
10.Class l,Division l, Groups C,D; Class l,Division ll, Groups A,B,C,D; Class ll,Division l, Groups E,F,G; Class ll,Division ll, Groups E,F,G; Class lll

Materials:

Housing : Die-Casting Aluminum
Diffuser: Tempered glass
Bolts: Stainless Steel
Mounting Braket: Stainless steel

Rating and Certificates

  • NEMA 4X, IP66
  • IK10
  • UL1598 and UL1598A
  • UL844
  • CSA C22.2 No.137/No.250.0
    Class l,Division 1, Groups C,D
    Class l,Division 2, Groups A,B,C,D
  • Class ll,Division 1, Groups E,F,G
    Class ll,Division 2, Groups F,G
    Class lll
    Marine and Wet Locations
    IECEX
    ATEX

Specifications

IndexParameter
Wattage100W
ModelBB-100W CYZDA
Color Temperature5000K
Beam Angle120° Beam Angle
Total Lumens13,500lm
Size16’x16’x10.5′
CertificationUL DLC  Listed
Hazardous LocationClass 1 Divission 1
CRI70+
Life Span50,000 hours at 25℃
Voltage120-277VAC/50-60Hz
Explosion-proof GradeIl2 D Ex op is tb IIIC T135°C Db
CoverFlat glass Lens
Warranty5Years
  • Q1. Can I have a sample order for led light? How to order samples?
  • A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Send inquiry at cnotact page,we will contact with you,and send you quotation.
  • Q2.What’s your payment term?Can you accept the Credit Card?
  • A2:We accept payment Western Union / Paypal / Visa. We accept payment by credit card.
  • Q3. What about the lead time?
  • A3:Sample needs 1-5 days, mass production time needs 1-2 weeks for order quantity more than 8000pcs.
  • Q4. Do you have any MOQ limit for led light order?
  • A4: Low MOQ, 1pc for sample checking is available.
  • Q5. How do you ship the goods and how long does it take to arrive?
  • A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
  • Q6. How to proceed an order for led light?
  • A6: Firstly let us know your requirements or application.Secondly we quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal orders.Fourthly We arrange the production.
  • Q7: Do you offer guarantee for the products?
  • A7: Yes, we offer 3 years warranty to our products.
  • Q8: How to deal with the faulty?
  • A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
